Component Manufacture Design Process Guide

Are you looking to understand the ins and outs of component manufacture design? Whether you’re an engineer, designer, or entrepreneur, understanding the process is crucial for creating successful products. This guide provides a clear overview of the steps involved, helping you bring your ideas to life efficiently and effectively.

Key Takeaways:

• The component manufacture design process involves several key stages, from initial concept to final production, each requiring careful consideration.
• Design for Manufacturing (DFM) is essential to optimize designs for efficient and cost-effective production.
• Prototyping and testing are critical for identifying and resolving potential issues before mass production.
• Material selection and manufacturing process selection directly impact the final product’s quality, cost, and performance.

Understanding the Basics of Component Manufacture Design

The component manufacture design process is a systematic approach to creating parts that are not only functional but also easily and cost-effectively manufactured. It starts with a clear understanding of the product’s requirements and constraints, including performance specifications, target cost, and desired lifespan. This initial phase involves brainstorming different design concepts and evaluating their feasibility.

From there, the design progresses to detailed engineering, where specific dimensions, tolerances, and materials are selected. This stage often involves the use of Computer-Aided Design (CAD) software to create 3D models and 2D drawings of the component. These models are then used to simulate the component’s behavior under various operating conditions.

A critical aspect of component manufacture design is Design for Manufacturing (DFM). DFM focuses on optimizing the design for efficient production. This includes simplifying the geometry, minimizing the number of parts, selecting appropriate manufacturing processes, and considering assembly methods. Applying DFM principles early in the design process can significantly reduce manufacturing costs and improve product quality. For example, selecting standard component sizes or using features that are easy to machine can streamline the manufacturing process.

Key Stages in Component Manufacture Design

The component manufacture design process can be broken down into several key stages:

1. Concept Development: This is where the initial idea is fleshed out. It involves defining the problem the component will solve, identifying key features and functionalities, and exploring different design approaches.
2. Detailed Design: Once a concept is chosen, the design is refined with precise dimensions, material specifications, and tolerances. CAD software is used extensively in this stage to create detailed models and drawings.

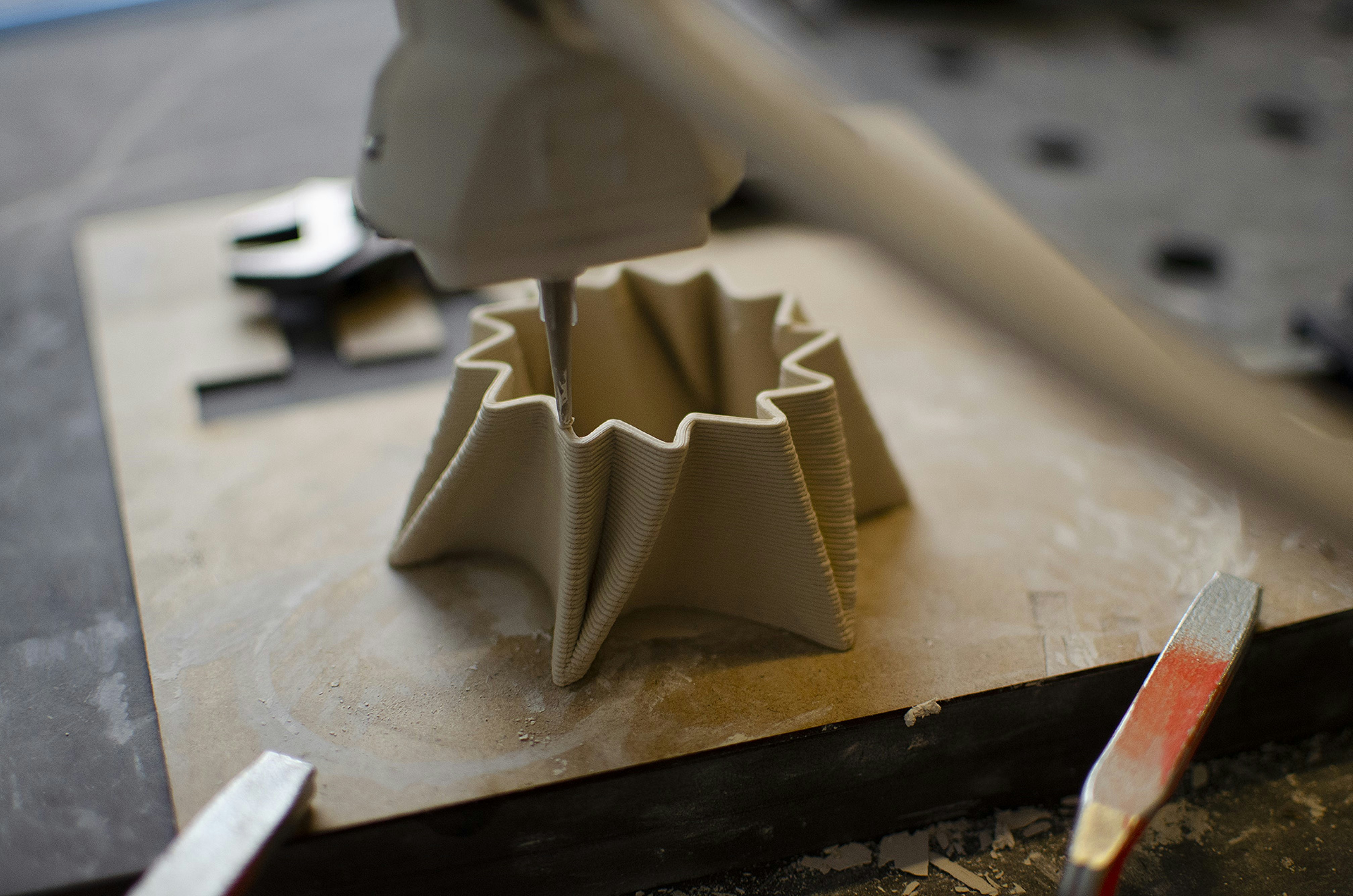

3. Prototyping: A physical prototype is created to test the design and identify any potential issues. This can involve using 3D printing, CNC machining, or other rapid prototyping techniques.
4. Testing and Validation: The prototype is rigorously tested to ensure it meets the required specifications and performs as expected. This may involve functional testing, environmental testing, and stress testing.
5. Manufacturing Process Selection: Based on the design and production volume, the appropriate manufacturing process is selected. This could include injection molding, die casting, stamping, machining, or other processes.
6. Production and Quality Control: The component is manufactured in volume, with strict quality control measures in place to ensure each part meets the required standards. Statistical Process Control (SPC) is often used to monitor and control the manufacturing process.

Importance of Material Selection in Component Manufacture Design

Material selection is a critical aspect of component manufacture design because the material directly impacts the component’s performance, cost, and manufacturability. Several factors need to be considered when selecting a material, including:

• Strength and Stiffness: The material must be able to withstand the applied loads without failing or deforming excessively.
• Durability and Corrosion Resistance: The material must be able to resist wear, corrosion, and other environmental factors over its lifespan.
• Machinability or Moldability: The material must be easy to machine, mold, or otherwise form into the desired shape.
• Cost: The material’s cost must be weighed against its performance characteristics and manufacturing costs.
• Weight: In some applications, such as aerospace and automotive, the weight of the material is a critical consideration.

Common materials used in component manufacture include metals (such as steel, aluminum, and titanium), plastics (such as ABS, polycarbonate, and nylon), and composites (such as carbon fiber reinforced polymers). The choice of material will depend on the specific application and the trade-offs between performance, cost, and manufacturability. The gb standard are also applied for ensure the components are complied with the international standard.

Optimizing Designs for Efficient Component Manufacture Design

Optimizing designs for efficient component manufacture design involves applying DFM principles to reduce manufacturing costs, improve product quality, and shorten lead times. Here are some specific strategies:

• Simplify Geometry: Avoid complex shapes and features that are difficult or expensive to manufacture.
• Minimize Part Count: Reduce the number of individual parts in the component to simplify assembly and reduce inventory costs.
• Use Standard Components: Incorporate standard components, such as fasteners and bearings, whenever possible to reduce costs and improve availability.
• Design for Assembly: Consider how the component will be assembled and design it to be easily assembled with minimal effort.
• Specify Realistic Tolerances: Avoid specifying unnecessarily tight tolerances, as this can significantly increase manufacturing costs.
• Consider the Manufacturing Process: Design the component to be compatible with the chosen manufacturing process.
• Early Collaboration: Encourage collaboration between designers, engineers, and manufacturing personnel early in the design process to identify potential manufacturing issues and optimize the design for manufacturability.
